Installing a convenient freshwater manifold

This project was originally published as a guest post at  Wheeling It  on Sept 2012. Thank you Nina for showcasing this easy RV mods in your blogsite.

This is Steve’s description of the water manifold project he completed on Betsy –

I performed this modification after reading about a similar project in Motorhome magazine.  It’s a low-cost way to make freshwater management easier, if you face the same issues we do as fulltimers who hook and unhook our utilities often:

  • To avoid possibly forgetting my regulator at the park, I wanted to move it into my RV’s compartment.  This puts it closer to the system it’s regulating and gives more accurate readings, and eliminates having to install the regulator on a faucet at every stop.
  • I didn’t like the hassle of moving my hose between the system intake valve and black tank flushout valve when I needed to dump the tank.
  • I wanted to have an extra “bib” available so I could connect a hose to wash the RV or do other tasks.

For these reasons, I made up a manifold out of 1″ PVC pipe and fittings, inexpensive and easy to do.  I used three 1-inch “slip T” fittings with female threads for the three 1/2″ faucets.  Using small sections of 1″ pipe between the slip fittings, I primed and cemented them together, then put a cap on one end of the manifold.  The other end was completed with a female threaded fitting that allowed a male hose end to be attached via a brass adapter.  All of these parts and the plastic ends I used on the hose sections can be found at any hardware store.

I ran a short section of hose from the regulator output to the manifold.  You can see in the photos that I cut up an extra hose to attach everything using the plastic hose ends, which are fine for the pressures involved here.


Here is the whole manifold assembly – a few short sections of 1″ PVC (I used sched. 40 for super strength), 3 “slip T” fittings with threaded inlets for the faucets, one end cap to seal the left end and a couple of fittings on the other end to adapt threads so the inlet hose could be attached.   I made 2 sections of the pipe wide enough to fit the galvanized “C” clamps, so I could mount it to the wall of the compartment.


The manifold faucet output hoses. The short section on the nearest faucet goes into the RV water system, and the black hose from the middle faucet is routed over the top to the black tank sprayer.

The regulator is a Watts 263A, which has high flow capability and is adjustable – nice unit. I bought mine at rvwaterfilterstore.  I intended to mount it in the compartment, but discovered it’s nice to be able to move it so I can let it drain onto the ground when removing the inlet hose.

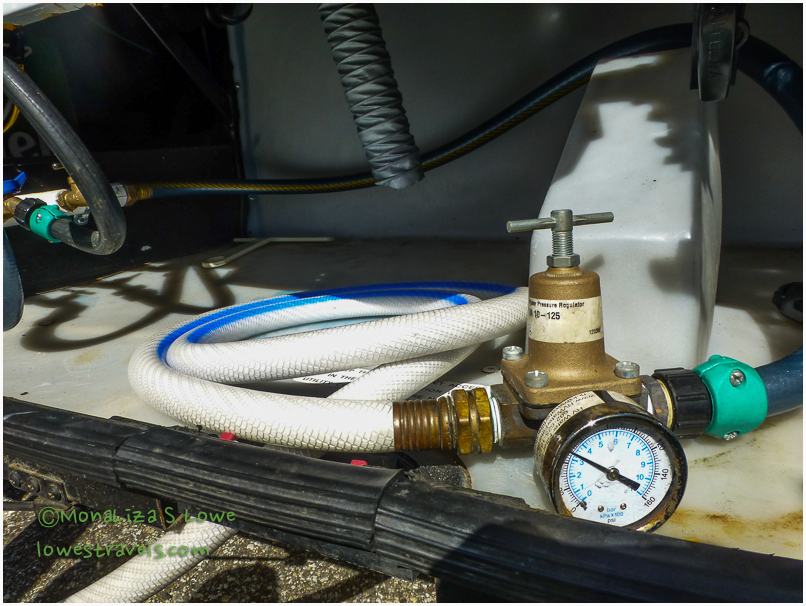

The Watts regulator just sits in the compartment, and the white hose going into it is the only connection I need to make.  I can lift the regulator over the front edge of the opening to drain any water onto the ground when I unhook from the campsite water supply.  In this photo you can see the dark hose coming out of the regulator output side and looping around the back of the compartment to attach into the manifold input.

When connecting at a campground, with all of the faucets shut off I can turn the park’s water on “full blast” without worrying about excessive pressure, since the water goes only to the manifold at that point.  After adjusting the regulator, I open the faucet to pressurize the RV system.  When dumping my black tank to depart, I shut off the faucet to the RV system, turn on the freshwater pump, then open the faucet to the tank sprayer as needed. I shopped around a bit to get good quality, high-flow faucets that would cause the least flow restriction in the system.

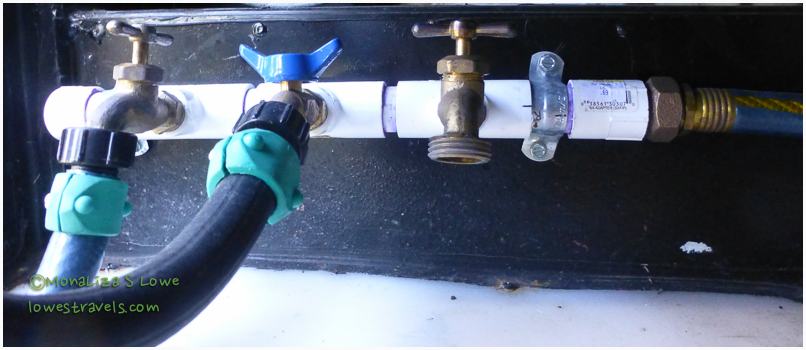

A view of the manifold from outside the compartment – either standard or gate-type faucets like the middle one can be used.  The rear one is available for other chores, so I never have to disconnect either of the other two.

NOTE: Although my RV came with a check valve in the black tank to prevent black water from coming out of its hose inlet, I installed an additional one just prior to the inlet to be sure.  The check valve is also available at rvwaterfilterstore for about $15.00.

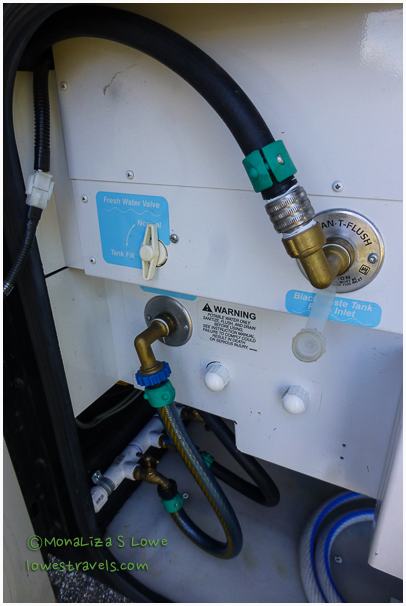

The knurled stainless steel piece is the additional check valve I installed, even though my coach came from the factory with one in the black tank.  I used 90-degree brass elbows to make the hose routing a little easier.

If you want your setup to look really cool and you have the money and tools, plumbing supply stores sell copper manifolds that can be used – but you’ll have to do quite a bit of soldering to put everything together.  It was a bit more than I wanted to take on for this project.

A separate point regarding water filters – I suggest using the ones that filter at 5 microns, NOT .5 microns.  Although it seems .5 would be better, those filters are very restrictive and clog up quickly.  We experienced low water pressure very soon after installing a .5 unit, and we’ve had no problems with the 5 micron filters, replacing them every 3 months.

Good luck!
